2IN1 Boring and Welding Machine Bore Welder Servo Line Boring and Welding Machine with European Connector, Hole Drilling Connecting Rod Boring Machine for Excavators Cranes Loaders, NO Welder

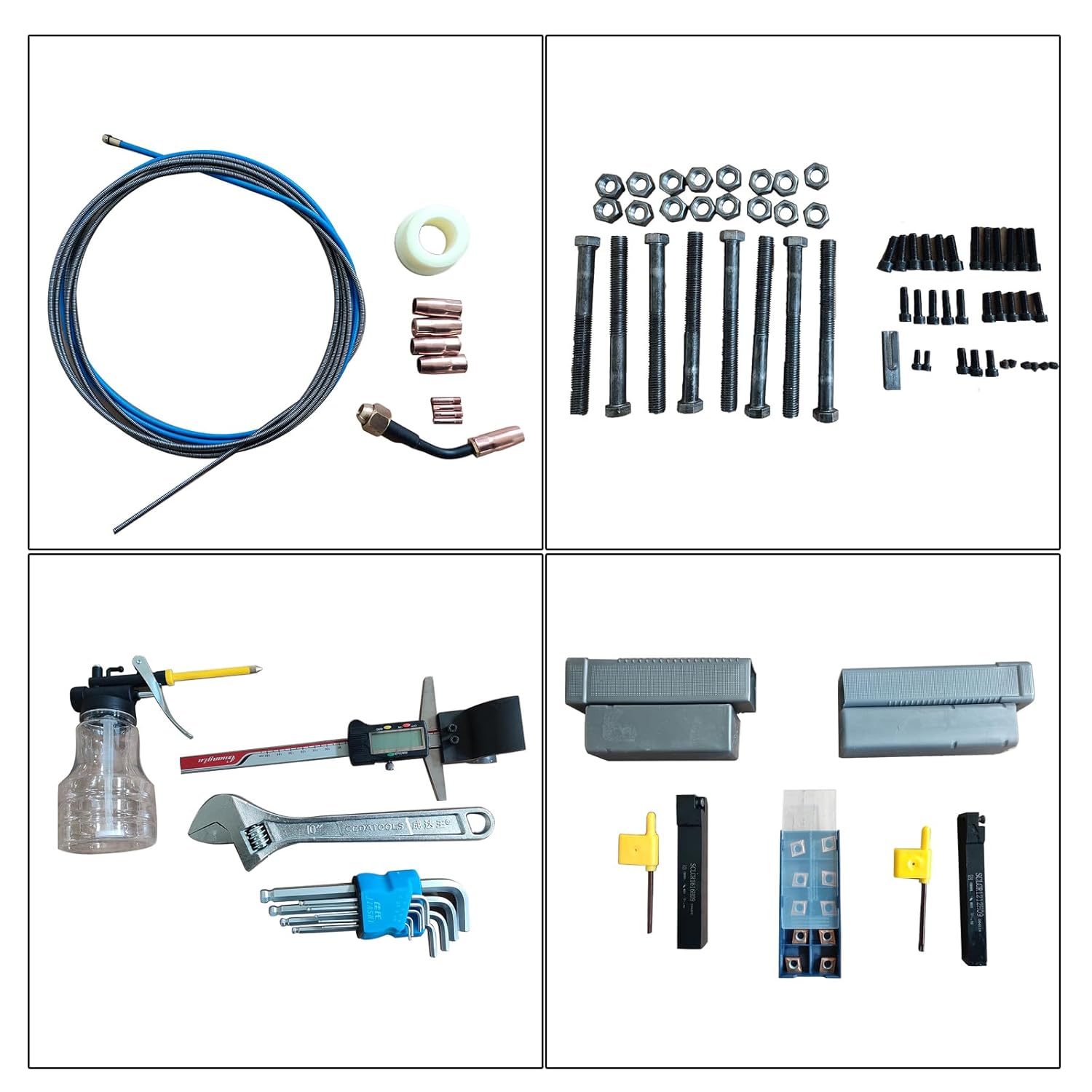

Specification Operating Voltage：AC 110V/50hz Power: 1.5KW Welding machine: European connector (Note: The welding machine needs to be equipped by yourself) Max Welding Hole Diameter: Ф230mm Min Welding Hole Diameter: Ф60mm Max Boring Diameter: Ф260mm Min Boring Diameter: Ф55mm Max Processing Stroke: 240mm Max Infeed Depth: 3mm on one side (A3 steel) Surface Roughness: Ra3.2 Hole roundness error: ≤0.02mm Boring bar: 50x1500mm Welding bar: 30x1200mm Work Environment: Ambient Temperature：-10℃～+55℃ Storage temperature：-25℃～+70℃ Relative humidity：≤85％ Package included:1set 110V Portable Line Boring Machine Bore Welder with European Connector for Welding Range 2.36-9in, Boring Range 2.17-10.24in(022809) The portable line boring welder machine does not include MIG welder, it needs to be equipped by yourself. Portable boring machine is a processing equipment mainly developed for on-site maintenance of engineering, energy, and chemical equipment. It is mainly used for processing small pipe inner holes and concentric spacing holes. It is widely used in excavators, cranes, loaders, and cranes.

• 【Parameters】AC110V/50Hz Line Boring and Welding Machine, Max welding hole Dia 230mm; Min Dia 60mm; Max boring Dia 260mm; Min Dia 55mm; The welding machine adopts European type connectors, but NO Welder. The whole machine adopt 110V constant current motor with low speed and large torque, which can realize stable processing and superior performance.
• 【Automatic and Safety Operation】Both feeding and processing can achieve stepless speed regulation. The feeding stroke can be set as needed, and processing can be automatically stopped after reaching the limit switch position. The motor controller is equipped with a dynamic delay braking program to avoid vibration during shutdown.
• 【High Quality Boring Bar】The 4.9ft length boring bar is made of high-strength alloy and structural steel, which has the characteristics of high hardness, high precision, high toughness and good wear resistance. The boring bar can be disassembled separately for convenient installation.
• 【Welding and Boring 2in1 Functions】Portable line boring welding machine Drilling rod boring machines combine high-end equipment with multiple functional modes for welding, boring, and end face machining. The new equipment combines these two functions, welding and drilling are combined to complete these two sets of equipment.
• 【Widely Application】Boring and welding machine is a processing equipment mainly used for on-site maintenance of engineering, energy, and chemical equipment. Mainly used for processing small pipe inner holes and concentric spacing holes. Widely used in excavators, cranes, loaders and cranes.
